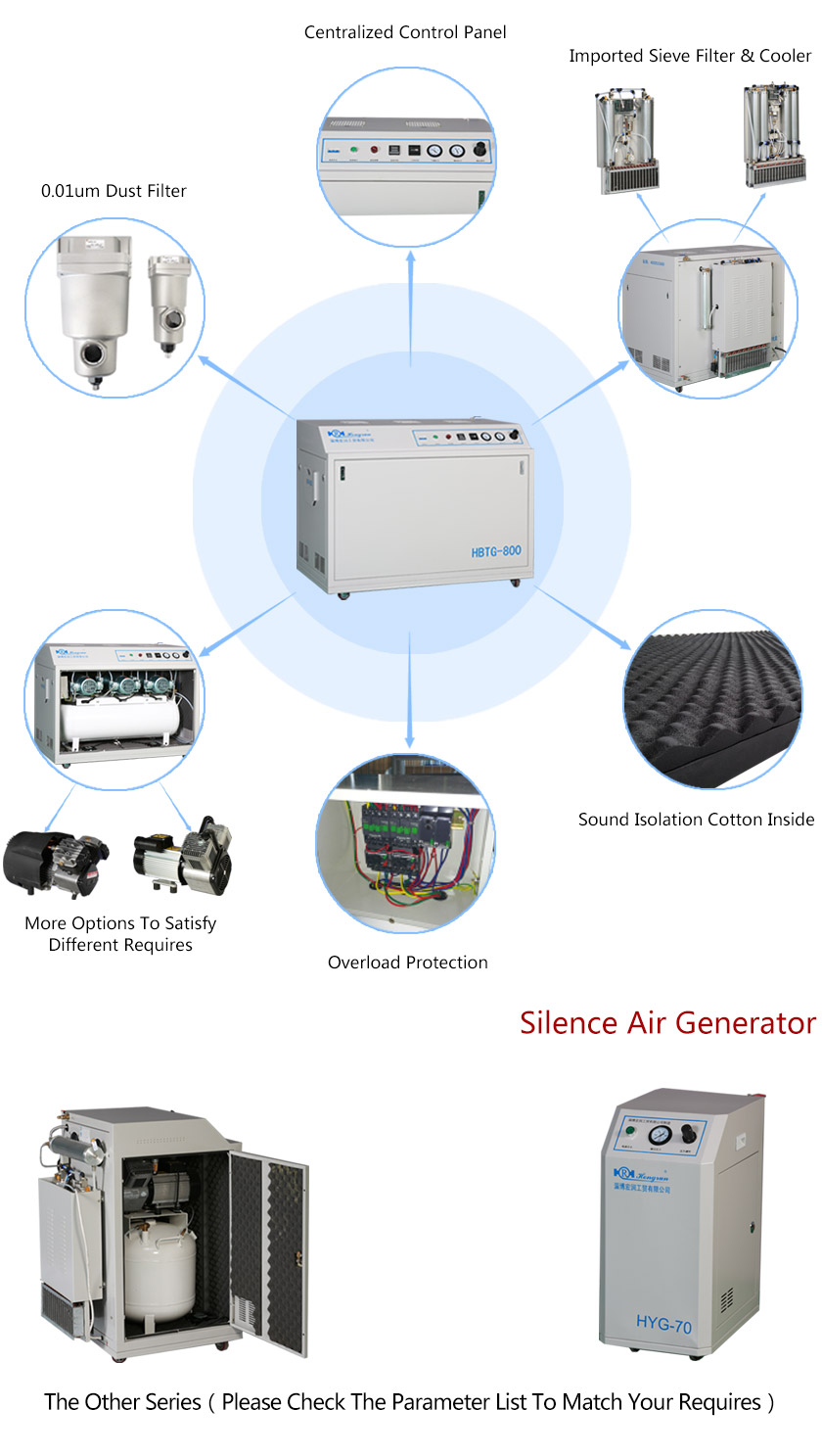

Silent Air Generator For Lab
- 1.Concise & Clear Operation Panel.
- 2.Stable Compressed Air Supplying.
- 3.High Quality, Oil Less, Dry & Clean Compressed Air.
- 4.Automatic Switch Off Protection To Avoid The Machine Doesn’t Switch Off Due To Some Fault.
- 5.Easy Operation, Automatic On-Off, Automatic Water Drainage, Overload Protection.
- 6.Less Energy Consumption, Less Spare Needed.
- 7.Sound Isolation Cotton To Reduce The Noise.
Oral Simulation Education
Labs
Dental Clinic & Hospital
Disinfection Center
ICU
False Tooth Manufacturing
| Item | Voltage .V/Hz | Power.W | Max. Pressure. Map | Max.Pressure Capacity. L/min | Pressure Adjustment Range.Mpa | Dew Point Of Dryer | Filter Accuracy | Noise | Weight.KG | Air Tank Volume. L | Dimension .mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HYG-30 | 220/50 | 250 | 0.6 | 4 | 0.3-0.6 | -40℃ | 5um-0.01um | <48dB(A) | 32 | 5 | 300*600*460 |
| HYG-35 | 250 | 0.6 | 5 | 0.3-0.6 | <48dB(A) | 32 | 5 | 300*600*460 | |||
| HYG-70 | 550 | 0.75 | 25 | 0.5-0.75 | <58dB(A) | 53 | 5 | 350*550*730 | |||
| HYG-80 | 600 | 0.75 | 35 | 0.5-0.75 | <58dB(A) | 53 | 5 | 350*550*730 | |||
| HYG-300 | 1100 | 0.75 | 90 | 0.5-0.75 | <62dB(A) | 90 | 50 | 600*750*1060 | |||
| Item | Voltage .V/Hz | Power.W | Max. Pressure. Mpa | 0.75Mpa Capacity. L/min | Pressure Adjustment Range.Mpa | Dew Point Of Dryer | Filter Accuracy | Noise | Weight.KG | Air Tank Volume. L | Dimension .mm |
| HBTG-260 | 380/50 | 1800 | 0.75 | 130 | 0.5-0.75 | -40℃ | 5um-0.01um | <68dB(A) | 188 | 100 | 1200*880*1080 |
| HBTG-520 | 1800*2 | 260 | <70dB(A) | 210 | 100 | 1200*880*1080 | |||||
| HBTG-800 | 1800*3 | 390 | <72dB(A) | 290 | 150 | 1400*880*1080 | |||||
| HDG-150 | 220/50 | 1300 | 0.75 | 90 | 0.5-0.75 | -40℃ | 5um-0.01um | <68dB(A) | 90 | 50 | 600*750*1060 |
| HDTG-300 | 220/50 | 1300*2 | 180 | <70dB(A) | 195 | 100 | 1200*880*1080 | ||||
| HDTG-450 | 380/50 | 1300*3 | 270 | <72dB(A) | 275 | 150 | 1400*880*1080 | ||||
| DEG-200 | 220/50 | 1500 | 0.75 | 100 | 0.5-0.75 | -40℃ | 5um-0.01um | <68dB(A) | 95 | 50 | 600*750*1060 |
| DETG-400 | 220/50 | 1500*2 | 200 | <70dB(A) | 200 | 100 | 1200*880*1080 | ||||
| DEG-600 | 380/50 | 1500*3 | 300 | <72dB(A) | 280 | 150 | 1400*880*1080 |
