Dental Suction Device

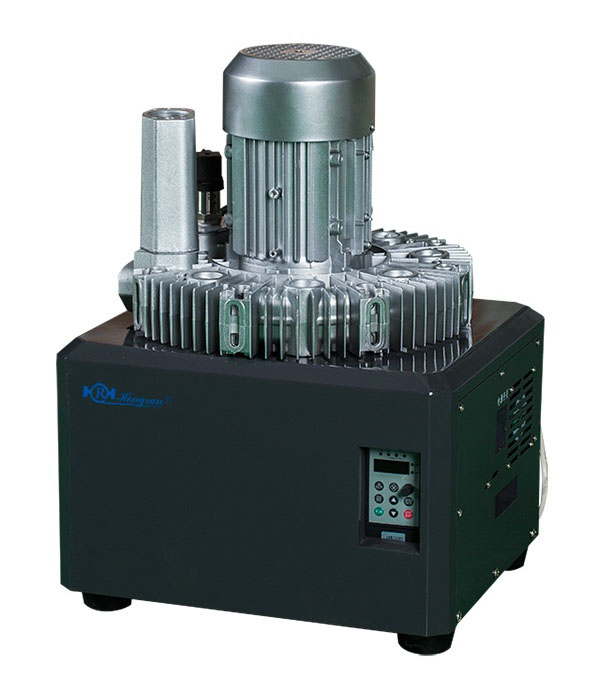

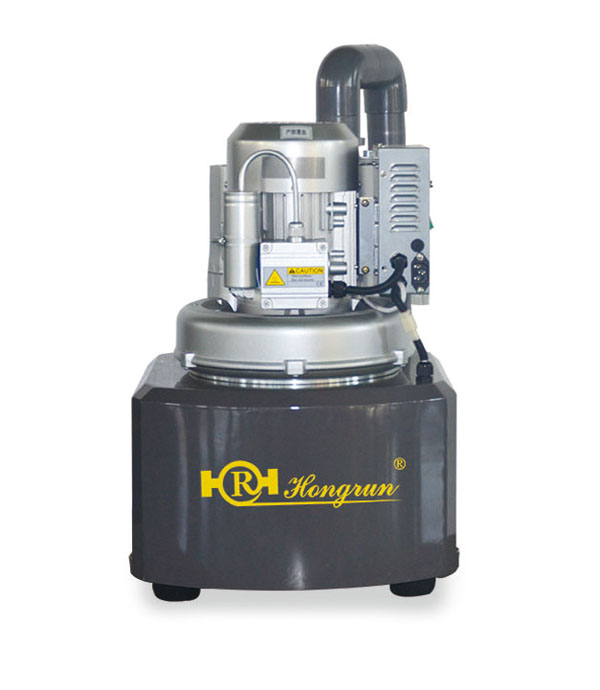

Vacuum Suction Device(Standard)

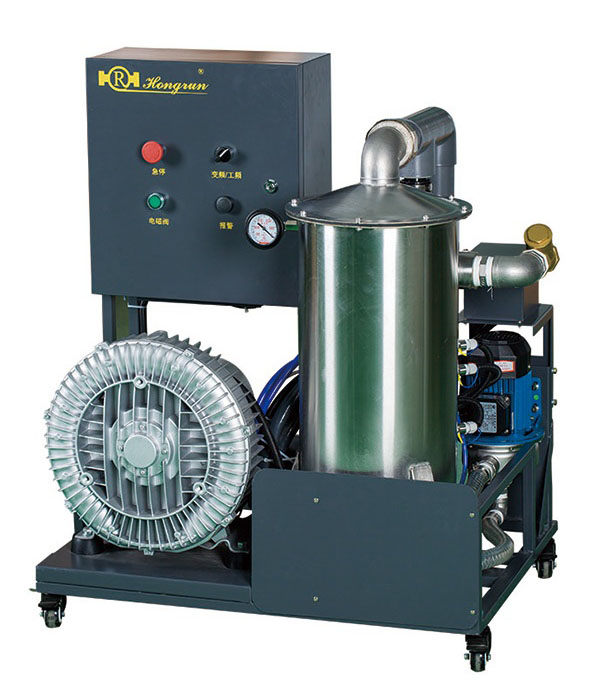

Vacuum Suction Device(With Inverter)
Bigger Capacity Vacuum Suction Device

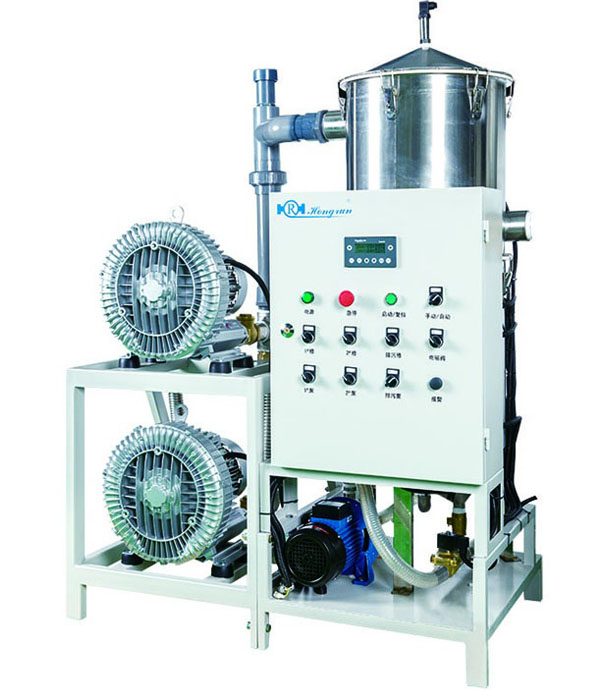

Biggest Capacity Vacuum Suction Device For More Dental Chairs
- 1.Suction & Exhausting Works In Same Time, No Suction Blind Points.
- 2.Stable & Bigger Capacity Suction.
- 3.Centralized Collection & Separation To Avoid Second Time Pollution.
- 4.Delay Suction Function Could Make Sure There Are No Remain Wastes Inside The Pipes To Guarantee Safety Medical Environment.
- 5.Less Space， Less Water Consumption.
- 6.Easy Operation & Maintenance, Longer Use Life.
- 7.Protect The Doctors, Avoid Infecting To Each Other.
- 8.No Swallow Reaction From The Patients，Higher Efficiency.

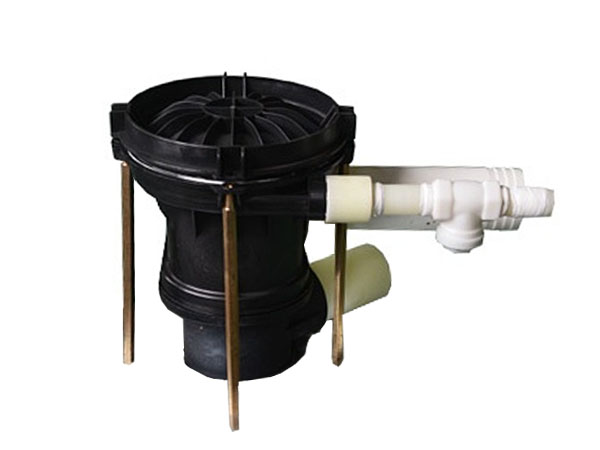

The Separation Device Inside To Separate The Air & Mixtures, Exhaust Separately

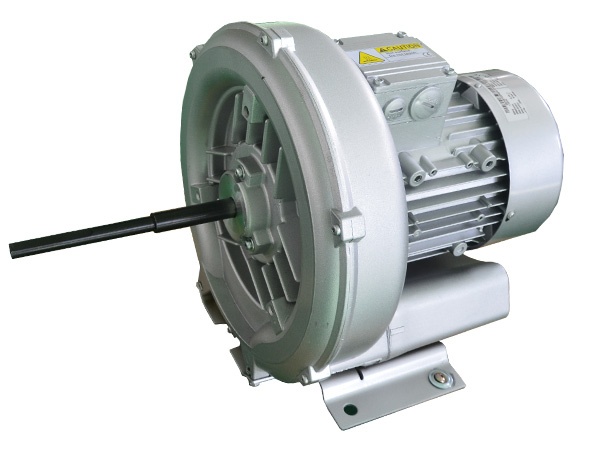

Vacuum Suction Pump With Special Design Impeller For Better Performance & Stable Suction

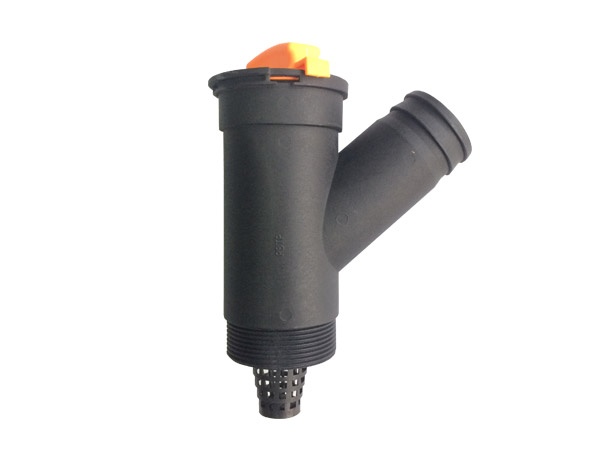

Inlet Filter, easier installation & better connection

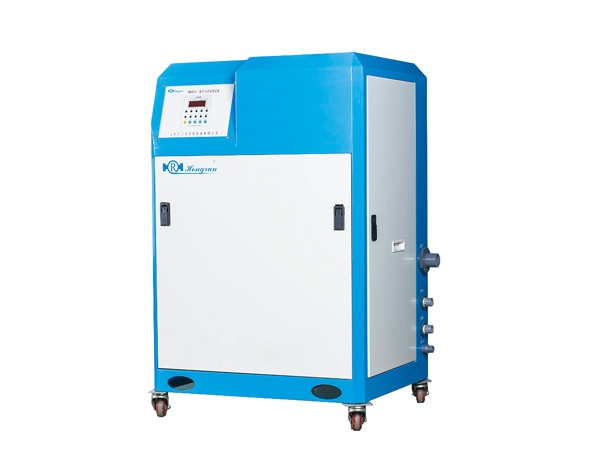

The Dental Waste Water Treatment Device Is Optional, The Dental Waste Water Is Treated By O3 Or Ultrasonic To Satisfy The Medical Waste Water Drainage Standard And Protect The Environment.
Dental Clinic & Hospital
False Tooth Manufacturing
| Item | Voltage.V | Head Nos. | Max.Suction Capacity. m3/min | Power.W | Vacuum Rate. Kpa | Noise.dB(A) | Weight.KG | Dimension.mm |
|---|---|---|---|---|---|---|---|---|
| HVS-1 | 220 | 1 | 0.3 | 750 | 《-12 | 《68 | 32 | 430*390*650 |
| HVS-2 | 0.9 | 1300 | 《-13 | 《69 | 36 | 430*390*650 | ||
| HVS-3 | 1.5 | 1500(Inverter) | 《-14 | 《69 | 40 | 430*430*650 | ||
| HVS-5 | 380 | 1.5 | 1900 | 《-15 | 《76 | 104 | 800*600*970 | |
| HVS-7 | 2.1 | 2500 | 《-15 | 《76 | 112 | |||
| HVS-10 | 3.0 | 3300 | 《-16 | 《76 | 117 |
